BlackView MP100 AMD R7 5825U/16GB/512GB/1xHDMI+1xDP/RJ45/BT/WiFI/W11P Black

Opis

BlackView MP100 AMD R7 5825U/16GB/512GB/1xHDMI+1xDP/RJ45/BT/WiFI/W11P Black

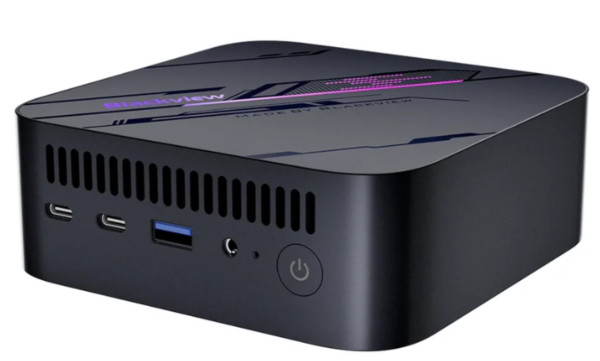

Product Appearance





Type

Spec.

Standard Configuration

Product

Product Type

MINI PC



Dimension

127*127*45mm



Case Material

Plastic+Metals

System Hardware Configuration





Type

Spec.

Description

CPU

Model

AMD Ryzen™ 7 5700U



Lithography

TSMC 7nm FinFET



Total Cores

8 Core ，16 Threads



Cache

L2 cache 4MB，L3 cache 8MB



Speed

1.8GHz



Max. Turbo Speed

4.3 GHz



Power Consumption

25W

GPU

Model

AMD Radeon™ Graphics



Cores

8 Core



Speed

1900MHz



Max Resolution

Max Resolution (HDMI) 3840×2160@60Hz，Max Resolution (DP)  3840×2160@144Hz，Max Resolution (Type C)  3840×2160@60Hz

Memory

Model

2*SODIMM  LPDDR4 （Up to 64GB）



Speed

3200MHz



Capacity

DDR4 Flush-mount，single channel  16GB / Dual channel 32GB

Storage

SSD

512GB&1TB（M.2  2280 PCIE3.0 SSD）



Interface type

1* M.2  2280 NVME +1*NVME/SATA3.0，Up to 2TB



2.5“ SSD

Optional, 2.5 inch 7mm SATA port SSD/HDD, Max 2TB

RTC

BIOS

Real-time Clock, Time Boot

Auto Power On

BIOS

Support auto power on after electrified

Diskless Network

BIOS

Support uefi/Legacy Diskless Switch On

TPM

CPU integratesTPM

Support TPM 2.0

multi-screen display

Video Output

In the system, HDMI1+DP two-screen display and Type-C three-screen display are supported（Any Type-C port, but does not support dual Type-C simultaneous display）

Heat-dissipating method

Heat-dissipating method

Copper tube + copper fin + fan

FAN

FAN

5V~0.5A/2.5W /Rated Speed2250rpm

LED

State

Button light: blue light running, red light sleeping, atmosphere light: running breathing color RGB (The ambient light is not adjustable and cannot be turned off)

Internet Connection





Type

Spec.

Description

WIFI

Model

M.2 E_Key



Protocol

IEEE 802.11 a, b/g, n, ac,ax

Bluetooth

Model

M.2 E_Key



Protocol

Support Bluetooth 5.2

3G

Built-in

No

4G

Built-in

No

Ethernet

LAN1

10M/100M/1000M Self-adaption

I/O





Type

Spec.

Description

USB

USB2.0

USB2.0 Type-A*1 480Mbps

USB

USB3.0

USB3.2 Gen2 Type-A*2 10Gbps

TF

Expansion Memory

No

HDMI

AV Output

HDMI 2.0b（Max 4K 60HZ)*1

DP

AV Output

DP1.4（Max 4K 144HZ)*1

VGA

Video Output

No

RJ45

Gigabyte Ethernet

RJ45 1000Mbps *1  Self-adaption

Type C

Data Transmission

Type_C *2(full-featured)10Gbps/Max 4K 60HZ

POWER

Power Button

x1

DC IN

Power Supply Input

5.5/2.1mm DC Jack x1

Audio-in/out

Audio-in/out

3.5mm Phone Jack x1 （Two-in-one interface）

Antenna1

FPC Antenna

WiFi 2.4+5G+BT x1

Antenna2

FPC Antenna

WIFI 6.0

SIM

Micro SIM

No Supporting

Software Configuration





Type

Spec.

Description

OS

Version

Win11 pro

Environment





Type

Spec.

Description

Environment

Working Temperature

0~40℃



Memory Temperature

-20~60℃



Humidity

90% @ 40 °C (No Condensation)
