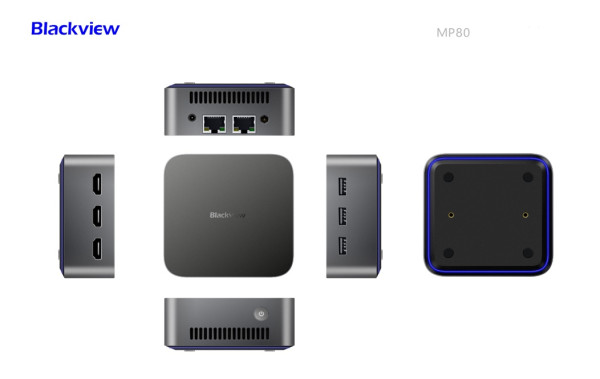

BlackView MP80 Intel N97/16GB/512GB/3xHDMI/3xUSB 3.0/2x RJ45/BT/WiFI/W11P Black

Opis

BlackView MP80 Intel N97/16GB/512GB/3xHDMI/3xUSB 3.0/2x RJ45/BT/WiFI/W11P Black

Type

Spec.

Standard Configuration

Product

Product Type

MINI PC

Dimension

87.8*87.8*37mm

Case Material

Plastic

Weight

214g

System Hardware Configuration

Type

Spec.

Description

CPU

Model

Intel  Alder Lake N97

Max. Turbo Speed

 3.60 GHz

Power Consumption

 15W

Memory

Model

LPDDR5

Capacity

16GB (on-board RAM)

Storage

SSD

 512GB（M.2  2280 NGFF SSD）

2.5“ SSD

No

TF Card

Not supported by default

RTC

BIOS

Real-time Clock, Time Boot

Auto Power On

BIOS

Support auto power on after electrified

Diskless Network

BIOS

Support uefi/Legacy Diskless Switch On

TPM

CPU integratesTPM

Support TPM 2.0

Double Display

Video Output

HDMI1+HDMI2 Double Display+HDMI 3 displays three screens

LED

State

Blue light- Swith on    Red light- Machine dormancy

Internet Connection

Type

Spec.

Description

WIFI

Model

intel 7265/ RTL8821CE On Board

Protocol

IEEE 802.11 a, b/g, n, ac

Bluetooth

Model

intel 7265/ RTL8821CE On Board

Protocol

Support Bluetooth 4.2

3G

Built-in

No

4G

Built-in

No

Ethernet

LAN1

10M/100M/1000M Self-adaption

LAN2

10M/100M/1000M Self-adaption

I/O

Type

Spec.

Description

USB

USB2.0

No

USB

USB3.0

USB3.0 Type-A*3

TF

Expansion Memory

No

HDMI

AV Output

HDMI 1.4b Type A  x3

VGA

Video Output

No

RJ45

Gigabyte Ethernet

RJ45 x2

Uart

Data Transmission

No

POWER

Power Button

x1

DC IN

Power Supply Input

5.5/2.1mm DC Jack x1

Audio-in/out

Audio-in/out

3.5mm Phone Jack x1 （Two-in-one interface）

Antenna1

FPC Antenna

WiFi 2.4+BT x1

Antenna2

FPC Antenna

WIFI 5.0

SIM

Micro SIM

No Supporting

Software Configuration

Type

Spec.

Description

OS

Version

Win11 pro

Environment

Type

Spec.

Description

Environment

Working Temperature

0~40℃

Memory Temperature

-20~60℃

Humidity

90% @ 40 °C (No Condensation)

Accessory

Type

Spec.

Description

Power Supply

Vesa

Input 100~240V 50/60Hz Output12V/2.5A  DC 5.5*2.1mm

IR Remote Control

No

VESA Mount

YES
