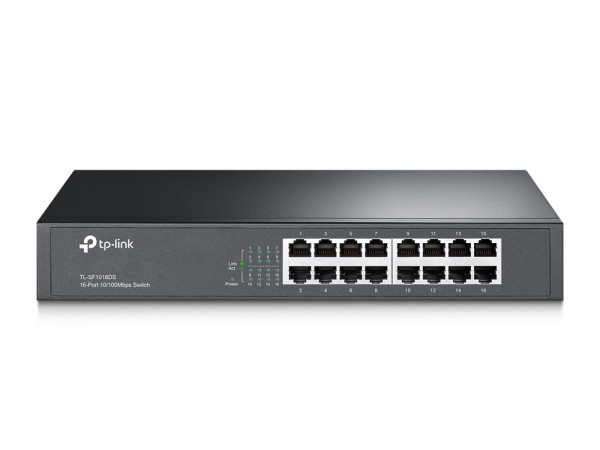

LAN Switch TP-LINK TL-SF1016DS 16-port 10/100Mb

Opis

HARDWARE FEATURES

Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

Interface
16 10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)

Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)100BASE-TX: UTP category 5, 5e or above cable (maximum 100m)

Fan Quantity
Fanless

Physical Security Lock
Yes

Power Supply
100-240VAC, 50/60Hz

Dimensions ( W x D x H )
11.6×7.1×1.7 in. (294×180×44 mm)

Mounting
Rack Mountable

Max Power Consumption
2.06W(220V/50Hz)

Max Heat Dissipation
7.03BTU/h

PERFORMANCE

Switching Capacity
3.2Gbps

Packet Forwarding Rate
2.38Mpps

MAC Address Table
8K

Buffer Memory
2Mb

Advanced Functions
Green Technology802.3X Flow Control

Transfer Method
Store-and-Forward

OTHERS

Certification
FCC, CE, RoHS

Package Contents
16-Port 10/100Mbps Desktop/Rackmount SwitchPower CordInstallation GuideRackmount KitRubber Feet

Environment
Operating Temperature: 0℃~40℃ (32℉~104℉);Storage Temperature: -40℃~70℃ (-40℉~158℉);Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing
