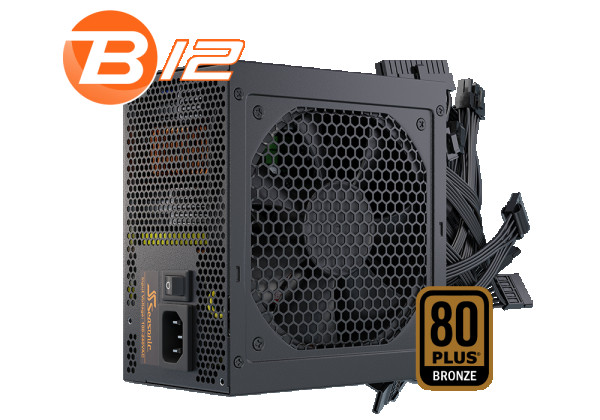

Napajanje 850W Seasonic B12 BC-850, 80+ Bronze

Opis

B12-BC-850

Technical Specifications

80PLUS®
Bronze

Cybenetics Efficiency Level
TBA

Cybenetics Noise Level
TBA

Form Factor
Intel ATX 12 V

Dimensions
140 mm (L) x 150 mm (W) x 86 mm (H)

Fan Information
Fan Size
120 mm

Fan Control
Smart and Silent Fan Control

Fan Bearing
Sleeve Bearing

Life Expectancy
25,000 hours at 40 °C, 15 % – 65 % RH

Cable Information
Modularity
Fixed cables

Cable type
Flat black cables

Electrical Features
Operating Temperature
0 – 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)

MTBF @ 25 °C, excl. fan
100,000 hours

AC Input
Full Range

Protection
OPP, OVP, OCP, SCP

Safety and Environmental
Safety and EMC
cTUVus, TUV, CB, CCC, BSMI, CE, FCC

Environmental Compliance
Energy Star, RoHS, WEEE, ErP Lot 6, REACH

Warranty
5 Years

Power Output

AC Input
Voltage: 100 V – 240 V

Current: 10 A Max.

Frequency: 50 Hz – 60 Hz

DC Output
Rail
+3.3 V
+5 V
+12 V
-12 V
+5 VSB

Maximum Power
15 A
15 A
70 A
0.3 A
2.5 A

100 W
840 W
3.6 W
12.5 W

Total continuous power
850 W
