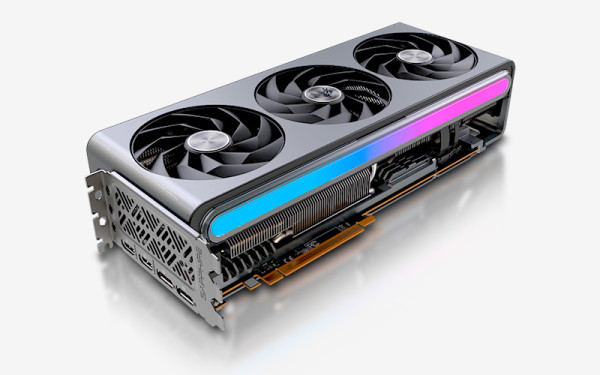

SVGA Sapphire Radeon RX 7900 XT Nitro Vapor-X 20GB, 11323-01-40G

Opis

GPU
AMD Radeon™ RX 7900 XT Graphics Card5nm GPUAMD RDNA™ 3 Architecture

Engine Clock

Boost Clock: Up to 2560 MHz
Game Clock: Up to 2220MHz


Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.

Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Stream Processors
5376

Compute Units
84 CU (with RT+AI Accelerators)

Infinity Cache
80MB

Ray Accelerators
84

Memory Size/Bus
20GB/320 bit GDDR6

Memory Clock
20 Gbps Effective

Displays
Maximum 4 Displays

Resolution

HDMI™: 7680×4320
DisplayPort 2.1: 7680×4320

Interface

PCI-Express 4.0 x16

Output

2x HDMI
2x DisplayPort

BIOS Support

Dual UEFI

Game Index

4K

Sapphire Features

Dual BIOS
TriXX Software Switch
Premium Digital Power Design
Ultra High Performance Conductive Polymer Aluminum Capacitors
Fuse Protection
Tri-X Cooling Technology
Vapor-X Cooling
High TG Copper PCB
Optimized Composite Heatpipe
Intelligent Fan Control
Precision Fan Control
Metal Backplate with ARGB
Dual ARGB Light Bar
Two-Ball Bearing Fans
Angular Velocity Fan Blade
Assistive System Fan Control
Die Casted Aluminum-Magnesium Alloy Frame
Frontplate Heatsink for VRM
Wave Fin Design
V Shape Fin Design for GPU Cooling
TriXX Supported
Fan Check
Fan Quick Connect
TriXX Boost
NITRO Glow
External RGB LED MB Synchronization

Accessories Bundled

Graphics Card Supporter
ARGB Extension Cable

AMD Features

AMD RDNA™ 3 Gaming Architecture
84 AMD RDNA™ 3 Compute Units (with RT+AI Accelerators)
80MB AMD Infinity Cache™ technology
DisplayPort™ 2.1
AMD Radiance Display™ Engine
AMD Radeon™ Boost technology*
AMD Radeon™ Anti-Lag* technology*
20GB GDDR6 on 320-Bit Memory Bus
PCI® Express 4.0 ready
AMD FidelityFX™ technologies*
AMD FidelityFX™ Super Resolution technology*
Microsoft® DirectX® 12 Ultimate
Microsoft® DirectStorage
Vulkan® Optimized
AMD smart technologies*
AMD Software: Adrenalin Edition™ application
AMD Noise Suppression*
AMD Privacy View*
AMD Radeon™ Super Resolution technology*
AMD Link*
AMD Freesync™ technology

Cooling

3 Fans
Vapor-X Cooling

Form Factor
3.5 slot, ATXDimension: 320(L)X 135.75(W)X 71.6 (H)mm

Power Consumption

368W Total Board Power

OS

Linux®, Windows® 10, and Windows 11. 64-bit  operating system required

System Requirement

Minimum 750 Watt Power Supply
3 x 8-pin Power Connector.
PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
Minimum 8GB of system memory. 16GB recommended.
