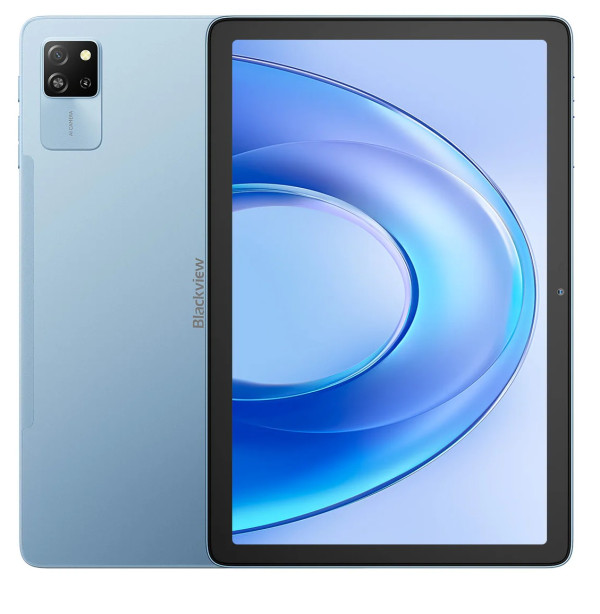

Tablet Blackview Tab 60 Pro 4G/LTE 10.1/T606 OC/4GB+128GB/7700mAh8MP/Andr14/Blue

Opis

Tab 60 Pro  Specifications

Basic

Model

Tab 60 Pro

Color option

Blue

Dimensions LxWxH, mm

242.7*161.5*8.5MM

Weight, kg

543g

Screen

Size, inch

10,1

Refresh rate

60HZ

Resolution

800*1280

Aspect ratio

16:10

LCD panel

BOE

IC

ER88577B

Panel type (IPS, other)

HD+ IPS

PPI/DPI

PPI:149

Brightness,1nit=1 cd/m²

Min:300cd/² Typ：350cd/²

Screen to Body Ratio (%)

79%

Viewing angle (H/V)

full angle

Touch panel

Multi-touch, points supported

10 points

Touch sampling rate

120Hz

TP type (G+G, other)

G+G

IC

GSL3670

glass

AGC

Connectivity

Wi-Fi version & spec

802.11a/b/g/n/ac（2.4GHz，5GHz）

Bluetooth version & spec

BT5.0

GSM spec                                              2G

B2/B3/B5/B8

3G spec

B1/B8

LTE spec

FDD:B1/B3/B7/B8/B20/B19/B28A/B28B TDD：B40/B41/B38

5G

Not support

GPS spec

GPS/GLONASS/Beidou/Galileo

PCBA

PCBA specs

8-layers

CPU name

UMS9230(T606)

Cores qty

Octa core

CPU clock (real clock using cpu-z)

2 x A75@1.6GHz + 6 x A55@1.6GHz

GPU

Arm Mali-G57 1core @ 650MHz

RAM type

UMCP

RAM volume

4GB/8GB

Memory expansion

8GB/16GB

ROM type

LPDDR4X

ROM volume

128GB

TF card slot

Support

USB type & qty

Type-C

Max temperature on the surface   during max loading

Celsius 45°

Video Decode

 H.264

video Encode

H.264

NFC IC

NO

Uplink speed

50Mbps

Downlink speed

150Mbps

Camera

Front, Mpix

5MP

Front Camera Sensor

GC02M1

Auto-focus (AF,FF)

FF

Front Camera Aperture

2,8

Front Camera Sensor Size

1600*1200

Front Flash

NA

Rear, Mpix

8MP

Rear Camera Sensor

OV5675

Rear Camera Sensor Size

2592*1944

Auto-focus (AF,FF)

AF

Rear Camera Aperture

2,2

Rear Flash

YES

Sound

Speaker qty

 2*1217-BOX

Speaker Ω/W

6.4Ω 1.0W

Receiver size LxWxH, mm

NO

Receiver Ω/W

NO

Microphone type

circle microphone

Power

PMIC (Power management unit)

U3256125PHV

Battety type & V/A

3.8~4.4V

Battery Size, LxWxH, mm

126*112.5*3.2

Polymer type

Polymer lithium ion battery

Battery capacity, Wh

29.645Wh

Battery capacity, mAh

7700mAh

Battery working  voltage range, V

3.0-4.4V

Max charging current for the battery, mAh

2A

Multi-media

video

MP4,3GP

audio

MP3,AAC,MIDI


JPEG,PNG

Features

Motor

NO

Operation system

Android 14

Sensors (Light, G-sensor etc)

 G-sensor

Gyroscope

NO

Magnetic

NO

Air pressure sensor

NO

Temperature humidity sensor

NO

Hall

NO

Compass

NO

fingerprint

NO

RGB

NO

NFC

NO

Coulomb Counter

NO

Wireless charging

NO

Hardware intercom

NO

UV

NO

heart rate

NO

Sim-card quantity

Two

Sim-card type

Two nano card/TF card

FM

YES

OTG (+USB Host function)

YES

Earphones 3,5mm jack type (OMTP or CTIA)

YES

FOTA (firmware over-the-air) updates  FOTA

YES

Accessories

Gift box

Yes,standard giftbox

User Manual

YES

Protective film separately

NO

Marketing film

Yes

Power adaptor (spec+color)

5V2A

Charger power

10W

USB charging

YES

USB connector type

TYPE-C

Current intensity, A

2A

OTG cable (color)

NO

Earphones (color)

NO

USB cable (color)

White
